Model:YJ-2A-03
Automatic Gyroscopic Mixer
The Automatic clamping mixer YJ-2A-03 is one of the most advanced gyroscopic mixers on the market. With an intelligent control system manages speed and time according to configurable parameters, its main function is to mix in the most effective and proper way for a wide selection of products, coming in various types of can materials and sizes.FEATURES
- Rotation and revolution go simultaneously during mixing.
- Single-directional and bi-directional rotating for option, mixing fastly and thoroughly
- Mixing speed can vary in function of weight and can shape.
- Automatic repositioning of the clamping plates, eliminates unnecessary operations
- Chinese and English user interface for option.
- The LCD display is easier to read for the operator and clearly shows each phase of the mixing process.
- Extractable lower clamping plate , load and unload can conveniently.
- Wheels and feet at bottom, convenient to move the mixer.
- The failure testing program can judge the fault easily
- The data of inverter is automatically set, leaving you no trouble when replace inverter.
- Electric-magnetic lock, keep the door closed during mixing.
PARAMETERS
|
BASE FEATURES** |
|
|
Type |
Gyroscopic mixer |
|
Clamping function |
Automatic |
|
Plate positioning after mixing cycle |
Automatic |
|
Mixing time |
From 15 sec to 9 mins 45 sec |
|
Big can Mixing speed (can height ≥220mm) |
50 rpm - 100 rpm/min |
|
Small can Mixing speed (can height <220mm) |
50 rpm - 150 rpm/min |
|
Mixing direction |
Single-direction and bi-direction for option |
|
CAN SPECS** |
|
|
Type of cans |
Round / Square |
|
Suitable can height |
95mm - 410mm |
|
Maximum can diameter |
320mm |
|
Maximun can weight |
35 KG |
|
POWER SUPPLY / MACHINE ENVIRONMENT** |
|
|
Power supply -- Frequency |
Single phase 110 /220 V ±10% -- 50/60 HZ |
|
Rated Power |
750 W |
|
DIMENSIONS ** |
|
|
Machine Size |
780 (L) X 735 (W) X 1015 (H) MM |
|
Packing Size |
830 (L) X 750 (W) X 1140 (H) MM |
|
Footprint |
0.58 ㎡ |
|
WEIGHT ** |
|
|
Machine Weight |
175 KG |
|
Gross Weight |
189 KG |
|
LOADING QUANTITY ** |
42 sets / 20" Container |
|
PACKING ** |
Carton |
|
CERTIFICATE** |
CE |
PRODUCT DETAIL
|
|

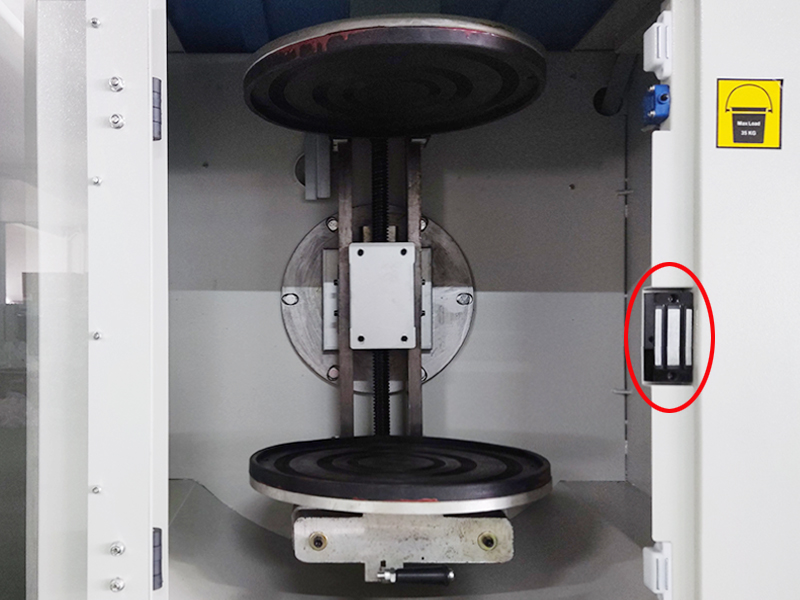

| Clamping mechanism | Extractable lower clamping plate ,load and unload can conveniently |
|
|

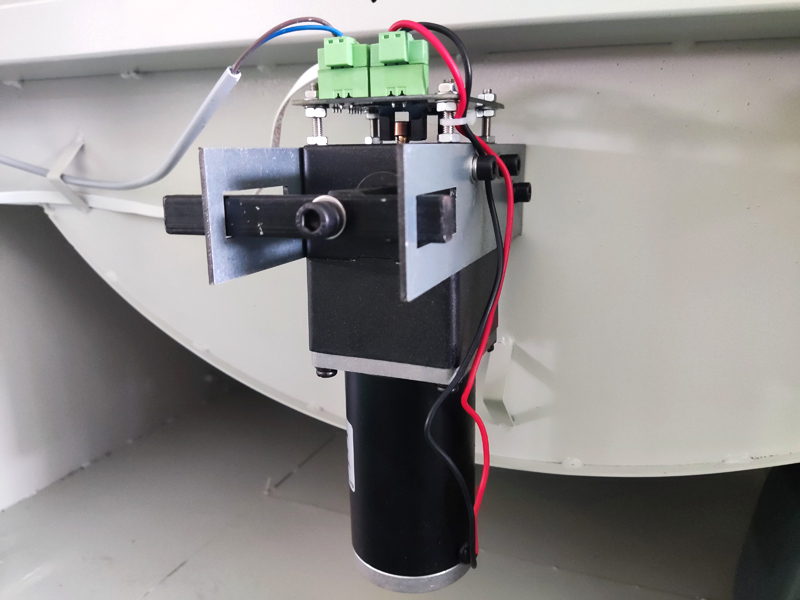

| Electronic board with high technology | Back side of mixer |
|
|

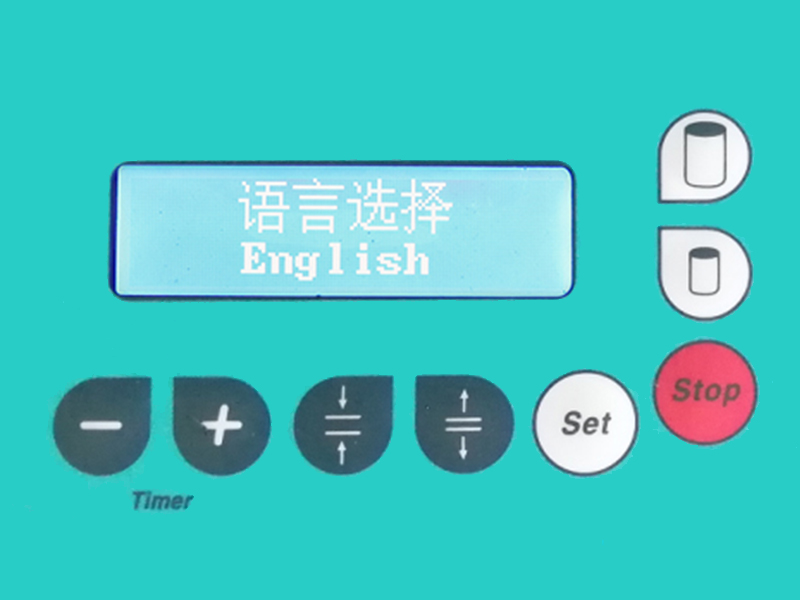

| LCD Control Panel, clearly shows each phase of the mixing process. | |

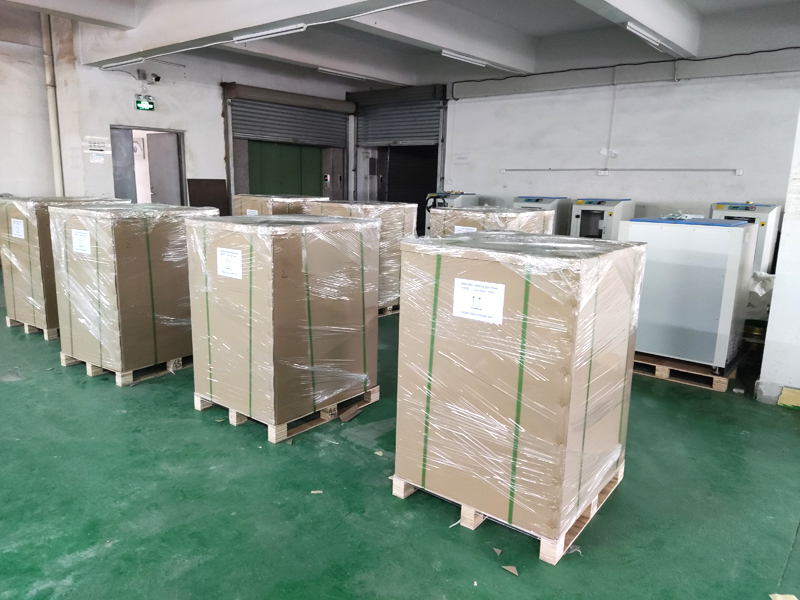

| PACKING | |
|
|
|
|
