Model:YJ-1M

Manual Paint Dispenser

YJ-1M manual dispensers are exceptionally easy to use and maintain, accurate and reliable, providing simplicity and essential functions at an affordable price.  They are suitable for use with universal decorative water-based colorants.

FEATURES

01
 Reliability & Durable
  • Iron rotating table and floor stander
  • POM plastic canisters or 304 stainless steel canisters for option.
  • Ceramic valve, accurate and abrasion resistant
  • Durable and corrosion-resistant 304 stainless steel pump cylinders
02
 User-friendly Operation
  • Automatic timer-controlled stirring colorants
  • Smart Gauge for fractional incremental dispensing, the user only needs to set the gauge one time for repeat multiple can dispensing
  • Retractable sealing valve handles with torsion spring , stop drips and avoid the drying of colorants.
03
 Easy maintain
  • ORemovable nozzles, easy to clean
  • Detachable pump, convenient to clean and maintain

OPTIONAL

04
 Canister quantity for option:
  • ORemovable nozzles, easy to clean
  • Detachable pump, convenient to clean and maintain
05
 Canister material
  • POM plastic canister (black or white)
  • stainless steel canister
06
 Gauge type
  • Double gauge (adhesive sticker mark)
  • Single gauge (Laser mark)
07
 The unit is available with the following gauges
  • US (1/48 & 1/384) [29,57 ml]
  • US (1/64 & 1/384) [29,57 ml]
  • Metric 1 ml
08
 Two Model type to fit your space
  • Floorstand models
  • Counter models

PARAMETERS

BASE DISPENSER FEATURES **

Colorant base compatibility

Water-based, Universal

Valve seal ring type

Silicone

Dispensing technology

Piston pump

Pump Capacity

60 ML

Minimum dispensed quantity

1/384 fl.oz. (0,077ml)

Canister configurations

Up to 16

Canister inner diameter

103mm----(plastic canisters)
100mm----(stainless steel canisters)

Canister capacity

2.3L (plastic) , 2.3L (stainless steel)

Canister material

Stainless steel or POM plastic

CAN TABLE SIZE **

Length

350 MM

Depth

300 MM

Maximum can height

500 MM

POWER SUPPLY / MACHINE ENVIRONMENT **

Power supply -- Frequency

Single phase 110 /220 V ±10% -- 50/60 HZ

Maximum power absorption

40 W

DIMENSIONS **

Machine Size

720 (L) X 720(W) X 1250(H) MM  ---- 12 canisters
860 (L) X 860(W) X 1250(H) MM  ---- 16 canisters

Packing Size

900 (L) X 455(W) X 840(H) MM  ---- 12 canisters
900 (L) X 455(W) X 840(H) MM  ---- 16 canisters

Footprint

0,17 ㎡

WEIGHT **

Machine Weight / Gross Weight
(with 12 plastic canisters)

60 KG / 65 KG

Machine Weight / Gross Weight
(with 16 plastic canisters)

70 KG / 75 KG

Machine Weight / Gross Weight
(with 12 stainless steel canisters)

69 KG / 74 KG

Machine Weight / Gross Weight
(with 16 stainless steel canisters)

90 KG / 95 KG

Loading Quantity

If assemble the canisters onto the
rotating table.

60 sets / 20"Container

If not assemble the canisters onto the rotating table.

100 - 120 sets / 20"Container

Certification

CE

PRODUCT DETAIL

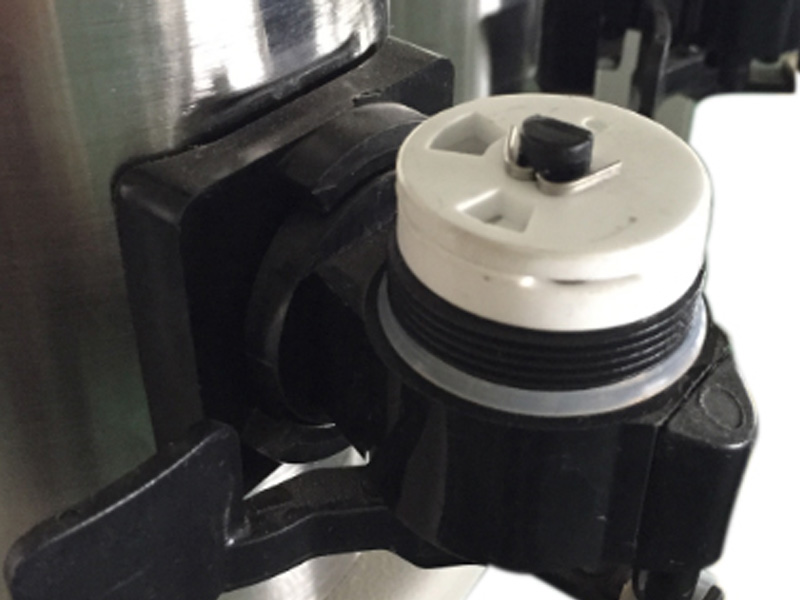

Ceramic valve accurate and abrasion resistant Detachable pump convenient to clean and maintain

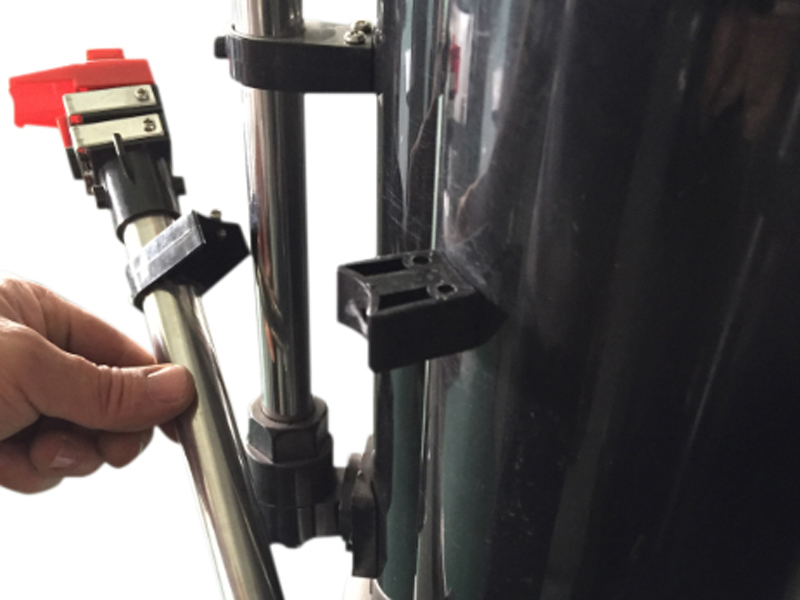

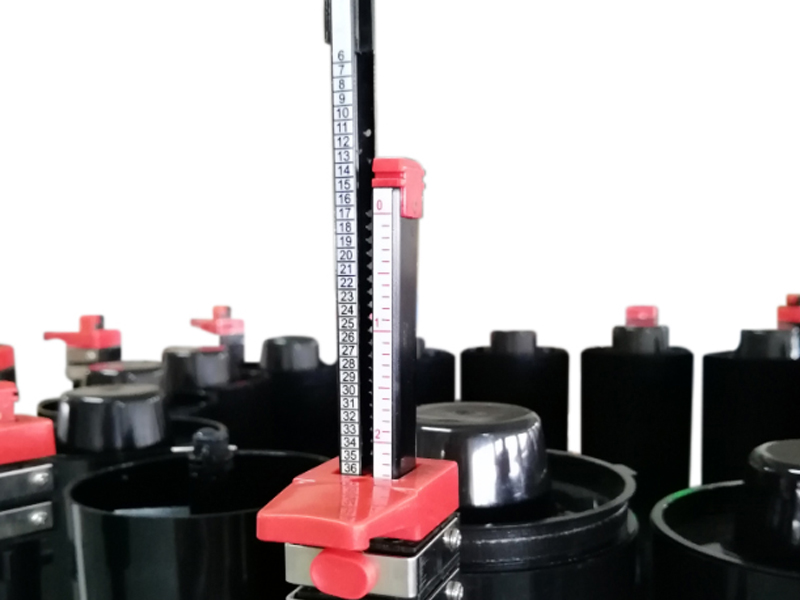

Retractable sealing valve handles with torsion spring , stop drips and avoid the drying of colorants. Double gauge (adhesive sticker mark)

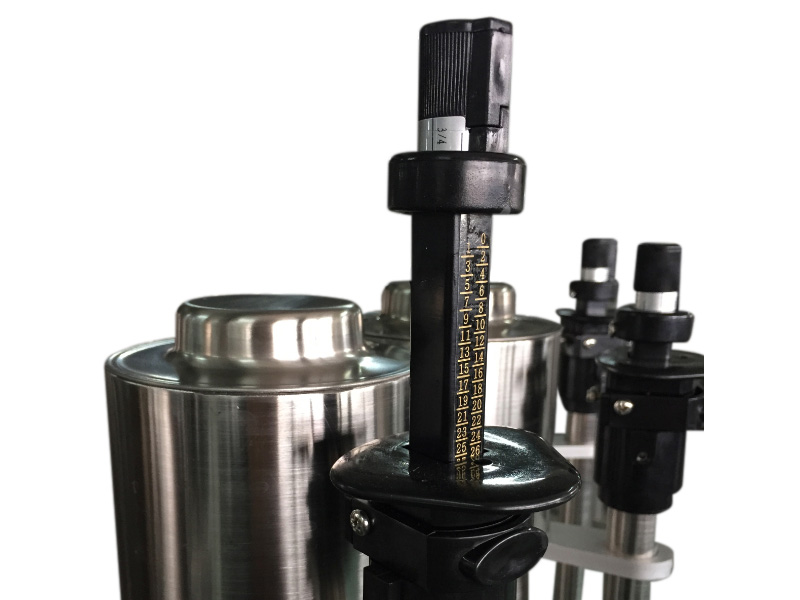

Removable nozzles, easy to clean Single gauge (Laser mark)

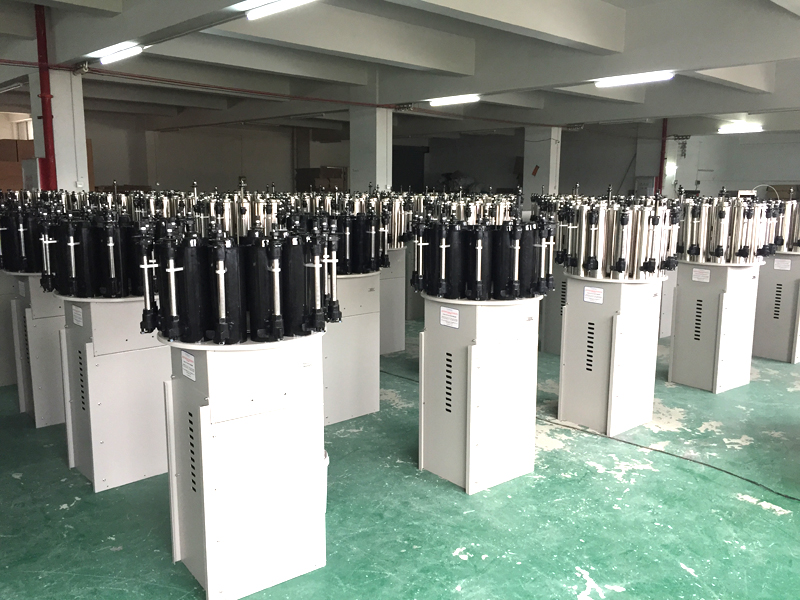

PACKING
