Model:YJ-MS-01

Manual dispenser & Shaker

The manual dispenser combine with shaker YJ-MS-01 only occupy small place which is extremely appreciated by the operators. It needs few steps necessary to finish tinting and mixing . And it is able to select the correct parameters to optimize clamping force, shaking time for you.

FEATURES

01
 Ideal Design
  • The design combining dispenser with shaker occupy small space.
  • Mechanical movement isolate with cabinet, ensure running stably with low noise.
  • The loading tray comes with a roller to facilitate the entrance of can into the clamping area.
  • Wheels and feet at bottom, convenient to move the shaker.
02
 Satisfying Performance
  • Fast and thoroughly mix by high speed vibration
  • Ceramic valve ensure accurately dispensing, good sealing and abrasion resistant.
  • Retractable sealing valve handles with torsion sprint, stop drips and avoid the drying of colorants.
  • Automatic timer-controlled stirring colorants.
  • Adjustable clamping force for different sizes of can.
  • Chinese and English user interface for option.
  • The LCD display clearly shows each phase of the shaking process.
03
 Safety
  • Safety inspection switch for door , the shaker will stop running when the door is open.
  • Centrifugal switch and overheating protection for shaking motor, effective to extend the motor life.

OPTIONAL

04
 Canister for option:
  • 12 canisters.
  • 16 canisters.
  • Black or white color
05
 The unit is available with the following gauges
  • US (1/48 & 1/384) [29,57 ml]
  • US (1/64 & 1/256) [29,57 ml]
  • Metric 1 ml

PARAMETERS

MANUAL DISPENSER BASE FEATURES**

Colorant base compatibility

Water-based, Universal

Valve seal ring type

Silicone

Dispensing technology

Piston pump

Pump capacity

60 ML

Minimum dispensed quantity

1/384 fl.oz. (0,077ml)

Canister configurations

Up to 16

Canister inner diameter

103mm----(POM plastic canisters)

Canister capacity

2L

Can table size

47 (L) x 26 (W) cm

AUTOMATIC SHAKER BASE FEATURES**

Mixing mold

Vibrational

Clamping function

Automatic

Clamping force

Adjustable

Shaking time

1 to 9 minutes

Shaking speed

Up to 710 shakes per minute

Suitable can height

80-380mm

Maximum can diameter

350mm

Multiple can handling

Yes

Maximun weight

30 KG

POWER SUPPLY / MACHINE ENVIRONMENT**

Power supply -- Frequency

Single phase 110 /220 V ±10% -- 50/60 HZ

Rated power

750 W

DIMENSIONS **

Machine Size

740 (L) X 790 (W) X 1480 (H) MM

Packing Size

760 (L) X 820 (W) X 1590 (H) MM

Footprint

0,59 ㎡

WEIGHT **

Machine Weight

249KG (with 12 canisters)
259KG (with 16 canisters)

Gross Weight

269KG (with 12 canisters)
279KG (with 16 canisters)

PRODUCT DETAIL

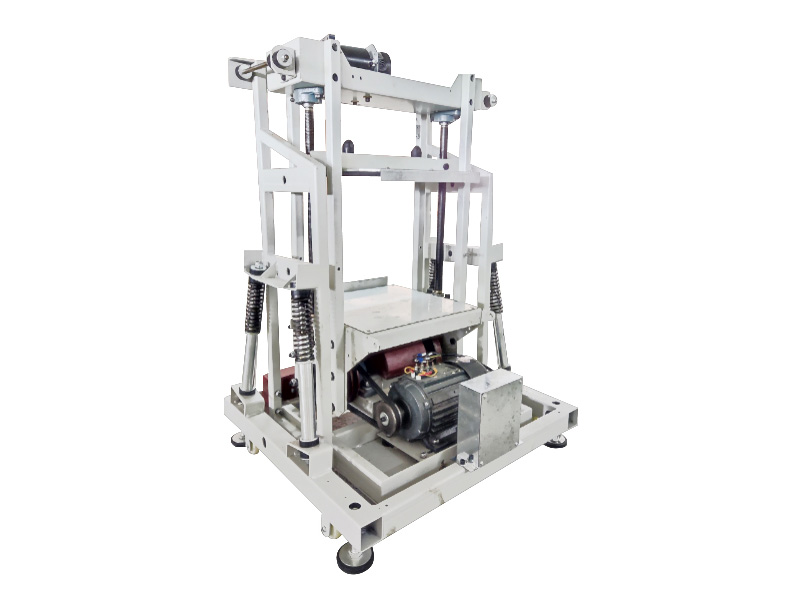

Ceramic valve accurate and abrasion resistant Isolated mechanical movement, ensure running stably with low noise.


Overheating protection for shaking motor. Electronic board with high technology
