Model:YJ-1A-16D
Automatic Paint Dispenser
The YJ-1A-16D is one of the most economical automatic dispenser on the market. It was designed to meet high standards for accuracy, repeatability. It’s an ideal automatic dispensing solution for stores where low to medium decorative paint volumes are tinted, helping to reduce mistints and eliminate waste.
This dispensing system is not only precisely controls the dispensing of ingredients to provide excellent finished paint product repeatability from batch to batch, but also serve as a complete color management system.
FEATURES
- Iron rotating table and floor stander
- Ceramic valve, accurate, corrosion resistant and good sealing.
- Durable and corrosion-resistant 304 stainless steel canisters and pump cylinders

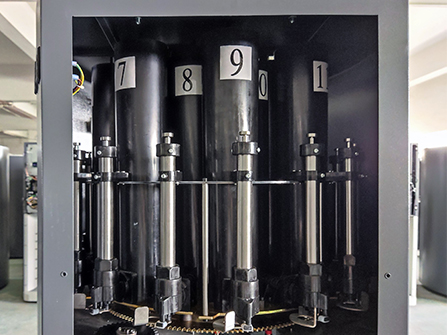

- Piston pump ensure unmatched precision.
- Automatically and manually nozzle cleaning, prevent nozzles from blocking.
- Automatic programmable stirring of colorants reduces colorant build-up
- Simple electrical system in the front , easy to maintain.
- The rolling brush will clean seal ring of nozzle automatically.
- Adjustable dispensing speed for each colorant.
- Low refilling height
- Upper canister area can be opened
-
Our driver software can read the formula data of Flink.dat and Formula.txt which created by CPS/Lenteq/Hero/ Innovatint/Largo Tint/Tecmec software, it’s compatible with major color software in the world.
PARAMETERS
|
BASE DISPENSER FEATURES ** |
|
|
Colorant base compatibility |
Water-based |
|
Valve seal ring type |
Silicone |
|
Dispensing technology |
Piston pump |
|
Dispensing flow |
Volumetric sequential dispensing |
|
Pump Capacity |
50 ML |
|
Canister configurations |
Up to 16 |
|
Canister inner diameter |
90mm |
|
Canister capacity |
2.3L |
|
Canister material |
PP |
|
Circuit flow rate |
0,25 L/min |
|
Minimum dispensed quantity |
1/384 fl.oz. (0,077ml) |
|
CAN TABLE SIZE ** |
|
|
Length |
350 MM |
|
Depth |
310 MM |
|
Maximum can height |
570 MM |
|
POWER SUPPLY / MACHINE ENVIRONMENT ** |
|
|
Power supply -- Frequency |
Single phase AC 110 / 220 V ±10% -- 50 / 60 HZ |
|
Rated power |
150 W |
|
DIMENSIONS ** |
|
|
Machine Size |
665 (L) X 750(W) X 1210(H) MM
|
|
Packing Size |
740 (L) X 850(W) X 1320(H) MM
|
|
Footprint |
0,5 ㎡ |
|
WEIGHT ** |
|
|
Machine Weight (with 16 canisters) |
114 KG |
|
Gross Weight (with 16 canisters) |
127 KG |
|
Loading Quantity |
21 sets / 21" Container |
|
PACKING ** |
Carton |
|
Certification |
CE |
PRODUCT DETAIL
|
|

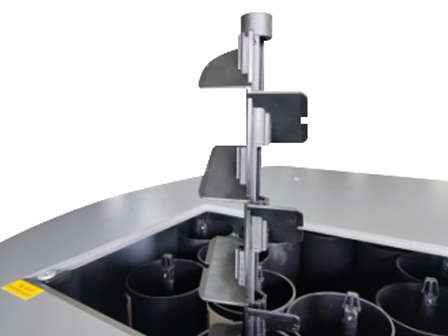

| The stirrer can help to measure the amount of colorants | Rolling brush,clean nozzles automatically |
|
|

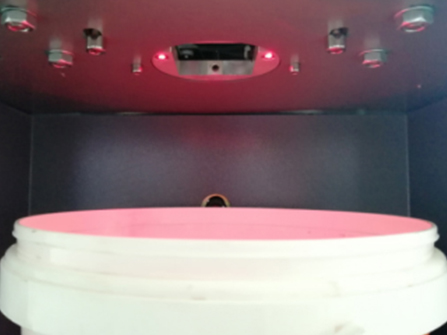

| Laser light, help to locate paint can | Can sensor, give alarm if there no can |
|
|

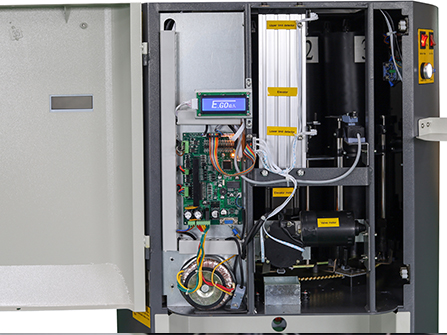

| 16 PP Canisters | Mainboard and electrical structure install in the front, convenient to maintain |

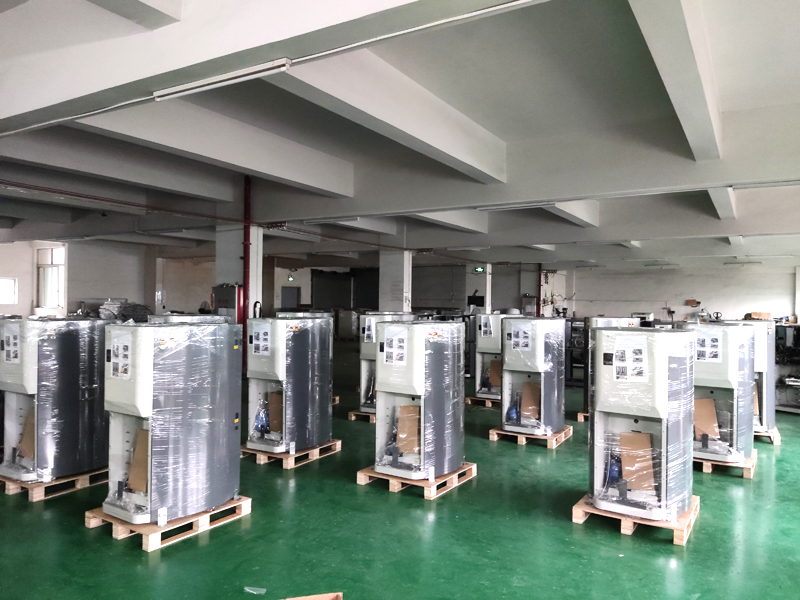

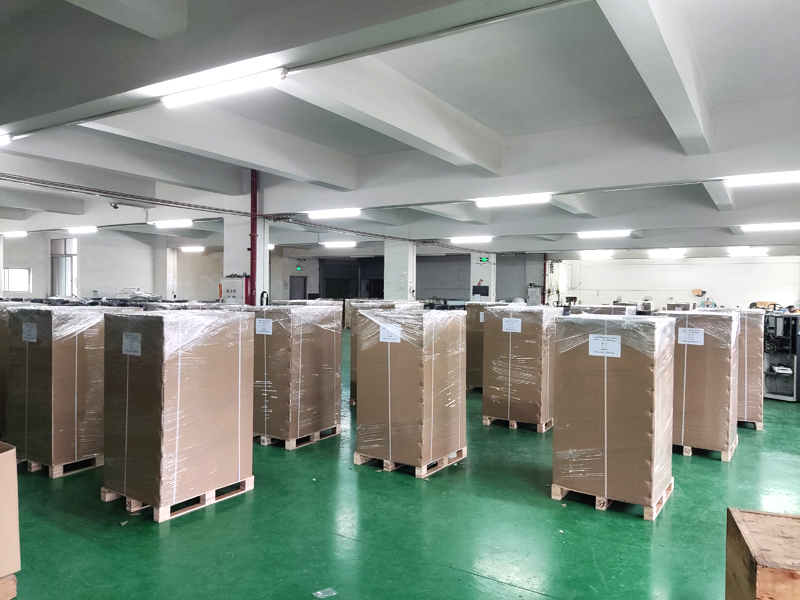

| PACKING | |
|
|
|
|
DOWNLOAD RELATED DOCUMENTS
